Interlocking Lead Bricks

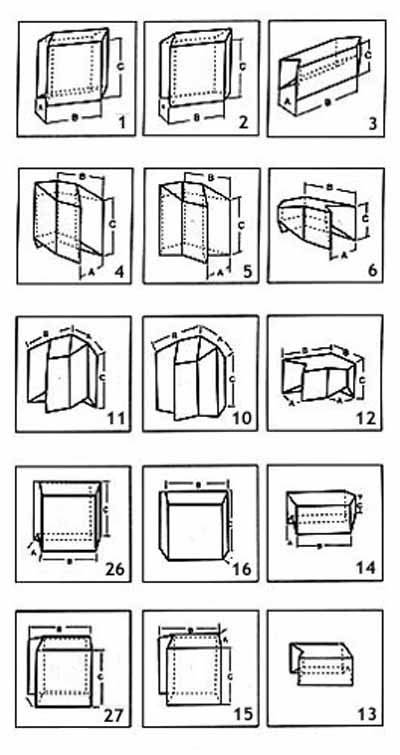

Interlocking Lead Bricks Diagram of types Interlocking Lead Bricks Diagram pieces put together

See reference numbers for shape function.

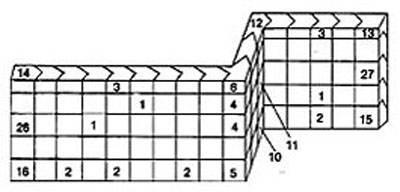

This wall demonstrates the dimensions and alternative positions of all variations of the standard brick wall. The walls should be built with male chevrons directed upwards and to the right, as viewed from the outside of the cell.

Standard Bricks AxBxC
1 001-100 Brick, Standard, Wall
Weight: 13.2 lb (6 kg)
2" x 4" x 4"
2 001-200 Brick, Standard, Base
Weight: 14.9 lb (6.9 kg)
2" x 4" x 4"
3 001-300 Brick, Standard, Top
Weight: 5lb (2.3 kg)
2" x 4" x 2"

Corner Bricks: AxBxC
4 001-400 Brick, Corner, Wall
Weight: 13.2 lb (6kg)
2" x 4" x 4"
5 001-500 Brick, Corner, Base
Weight:14.9 lb (6.9 kg)
2" x 4" x 4"
6 001-600 Brick, Corner, Top
Weight 5 lb (2.3 kg)
2" x 4" x 2"

Reverse Corner Bricks: AxBxC
11 001-132 Brick, Reverse Corner, Wall
Weight: 13.2 lb (6 kg)
2" x 4" x 4"
10 001-130 Brick Reverse Corner, Base
Weight: 14.9 lb (6.8 kg)
2" x 4" x 4"
12 001-135 Brick, Reverse Corner, Top
Weight 5 lb (2.3 kg)
2" x 4" x 2"

Left End Cap Bricks: AxBxC
26 001-148 Brick, Left End Cap, Wall
Weight: 14.9 lb (6.9 kg)
2" x 4" x 4"
16 001-147 Brick, Left End Cap, Base
Weight: 13.2 lb (6 kg)
2" x 4" x 4"
14 001-142 Brick, Left End Cap, Top
Weight: 5.2 lb (2.4 kg)
2" x 4" x 2"

Right End Cap Bricks: AxBxC
27 001-149 Brick, Right End Cap, Wall
Weight: 14.9 lb (6.9 kg)
2" x 4" x 4"
15 001-145 Brick, Right End Cap, Base
Weight:13.2 lb (6 kg)
2" x 4" x 4"
13 001-140 Brick, Right End Cap, Top
Weight: 5.2 lb (2.4 kg)
2" x 4" x 2"
