SPoRT™ Sectional Pediatric Radiography Trainer
Pediatric Anthropomorphic Training Phantoms X-Ray & CT

Now available with common fractures and flexed appendages

An ideal addition to any imaging department or Radiologic Technology training program, the CIRS Model 715 Series can assist in the monitoring, training and improvement of parameters and protocols common to most pediatric imaging procedures.

SPoRT™ is designed to aid teaching and improvement of patient positioning, collimation and anatomical comprehension and it's wide range of features facilitate effective instruction of safe, high quality, pediatric imaging.

The phantom represents a typical 5-year old in both size and structure, making it portable and easy to position. The full body with head, arms and legs measures 110 cm (43 in) tall and weighs 20 kg (44 lb). The series consists of six sectional phantoms available separately or as a complete set.

Right extremeties are available in extended or flexed configurations. Left arm and leg are available with or without embedded fractures. The fracture versions contain the most common pediatric fracture types, including buckle fracture to tibia and common fracture to fibula; fracture to first metatarsal; radius fracture with open reduction and hardware and a common fracture to second intermediate phalange.

Components are made from propriety urethane and epoxy materials that mimic X-ray attenuation properties of human tissues for both diagnostic and therapy energy ranges (50keV-25MeV). The materials are durable, impact resistant and suitable for continuous handling. Transparent soft tissue facilitates visual instruction of anatomical landmarks.

SPoRT™ can be used in film radiography, CR, DR and Computed Tomography.

The Standard for Anatomical Comprehension, Instrcution and Training

Benefits: Features:

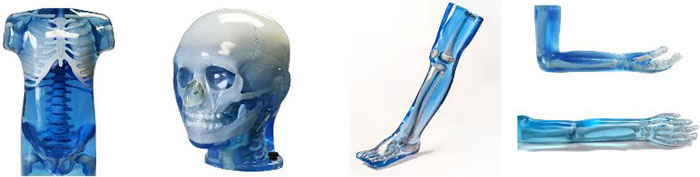

SPoRT Specifications

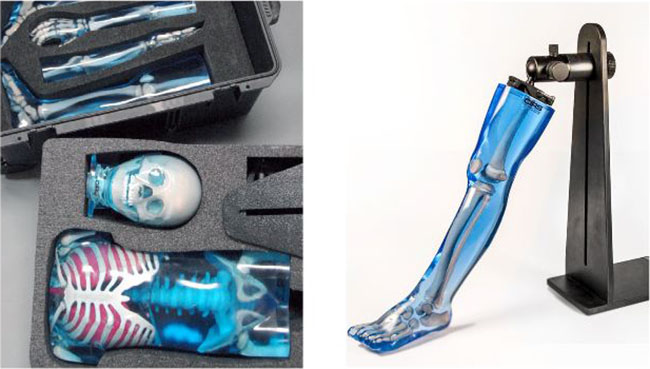

SPoRT Specifications 2

Specifications
Part No. Description Includes Weight Dimensions
715-HN Head Skull, Homogeneous Brain, Sinus, Cavities, Ear Canals, C1-C7 Spine, Spinal Disks, Deciduous and Descending Teeth with enamel and dentin, Small positioning stand for use with head only 2.75kg 21cm H x 14cm W x 17cm D
715-T Torso Chest, Rib Cage, Spine, Spinal Disks, Lungs, Bronchial Tree to third bifurcation, Lung Vasculature, Trachea, Scapula, Clavicles, Top Third of Humerus, Pelvis, Top Third of Femur 9.85kg 44.5cm H x 24cm W x 14cm D
715-A-R Right Arm Elbow in natural position, Full bone structure, Oblique hand position 0.7kg 37cm L x 8cm W x 7cm D
715-A-R-90 Right Arm
Flexed 90
Degrees
Elbow flexed 90 degrees, Full bone structure, Oblique hand position 0.7kg 32cm L x 8cm W x 13cm D
715-A-L Left Arm Elbow in natural position, Full bone structure, Natural hand position 0.7kg 37cm L x 9cm W x 5cm D
715-A-L-90 Left Arm
Flexed 90
Degrees
Full Bone Structure, Flexed 90 degrees, Oblique hand position 0.7kg 37cm L x 8cm W x 7cm D
715-A-L-FX Left Arm with Fractures Elbow in natural position, Full bone structure, Natural hand position, Radius fracture with open reduction and hardware, Common fracture to second intermediate phalange 0.7kg 37cm L x 9cm W x 5cm D
715-L-R Right Leg Knee in natural position, Full bone structure, Relaxed foot position 2.5kg 42.5cm L x 9cm W x 18cm D
715-L-R-90 Right Leg
Flexed 90
Degrees
Knee flexed 90 degrees, Full bone structure, Relaxed foot position 2.5kg 34cm L x 9cm W x 19cm D
715-L-L Left Leg Knee in natural position, Full bone structure, Plantar foot flexion 2.5kg 51.5cm L x 9cm W x 18cm D
715-L-L-FX Left Leg with Fractures Knee in natural position, Full bone structure, Plantar foot flexion Buckle fracture to tibia and common fracture to fibula; Fracture to first metatarsal 2.5kg 51.5cm L x 9cm W x 18cm D

SPoRT KITS
SPoRT Kits offer a complete, cost-effective solution for purchasing multiple sections of the SPoRT phantom.
Model Description Includes
715-35A SPoRT Kit, Advanced Features (1) each of 715-HN; 715-T; 715-A-L-FX; 715-A-R-90; 715-L-L-FX; 715-L-R-90; 715-S-1; 9508A
715-35 SPoRT Kit, Standard (1) each of 715-HN; 715-T; 715-A-L; 715-A-R; 715-L-L; 715-L-R; 715-S-1; 9508

Optional Accessories
Model Description
9508 Accommodates (1) each of 715-HN, 715-T, 715-A-L, 715-A-R, 715-L-L, 715-L-R, 715-S-1
9508A Accommodates (1) each of 715-HN, 715-T, 715-A-L-FX, 715-A-R-90, 715-L-L-FX, 715-L-R-90, 715-S-1
715-S-1 Large Positioning Stand for head, torso and appendages



CLICK HERE For SPoRT CT Images

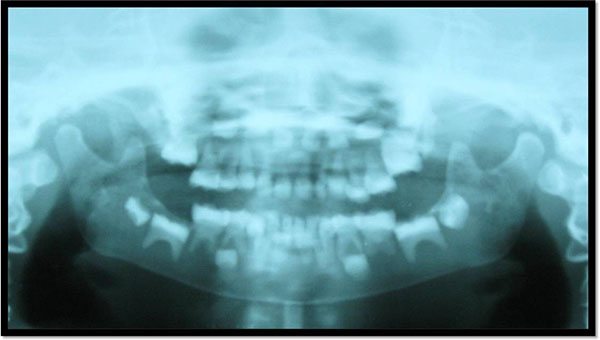

Child Dental head Phantom Panaramic X-ray Image SPoRT
SPoRT's Head can be used as a Child Dental Head Phantom.
Note: The head has 2 sets of teeth.

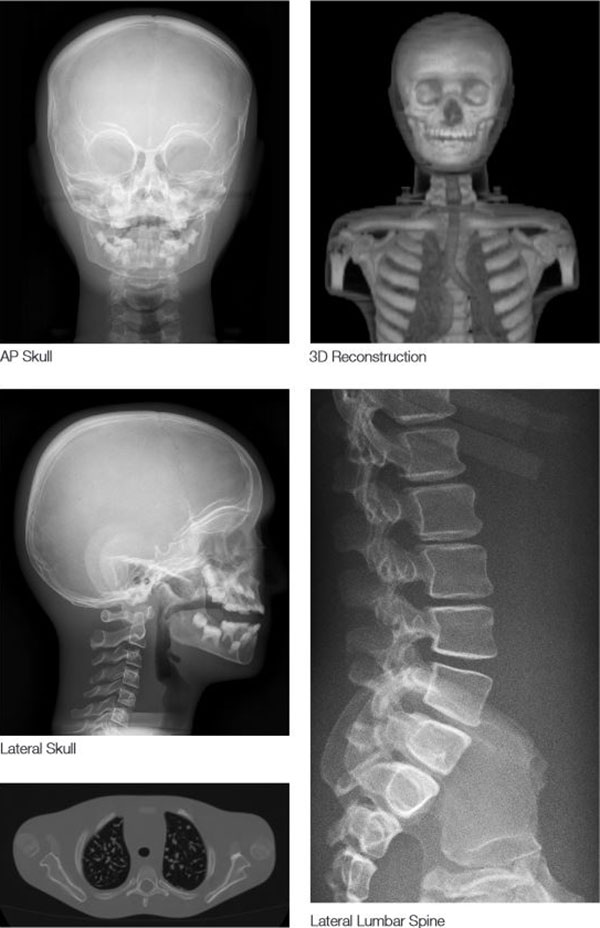

SPoRT Specifications 4

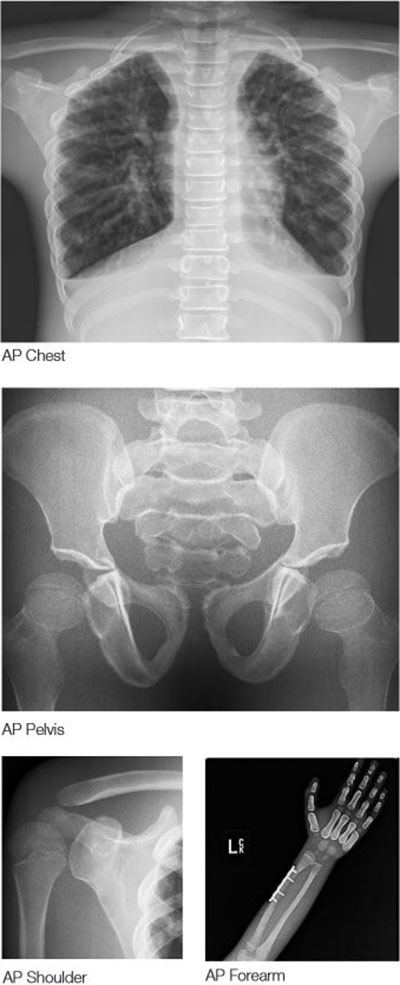

SPoRT Specifications 3

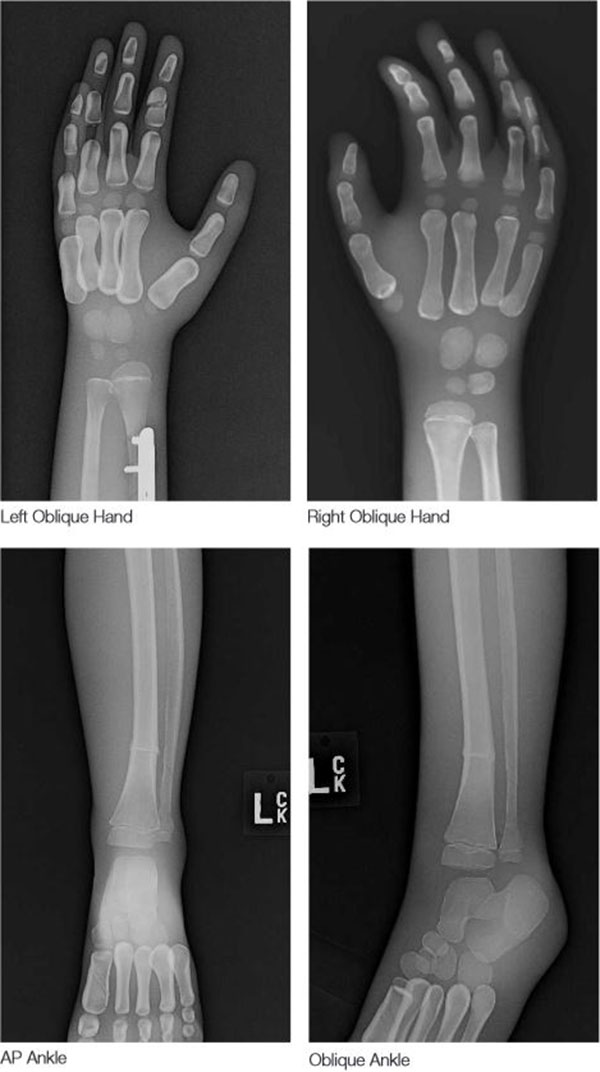

SPoRT Specifications 5
