"FAST/ER FAN"
Focused Assessment Sonography for Trauma
Acute Abdomen Ultrasound Examination Phantom

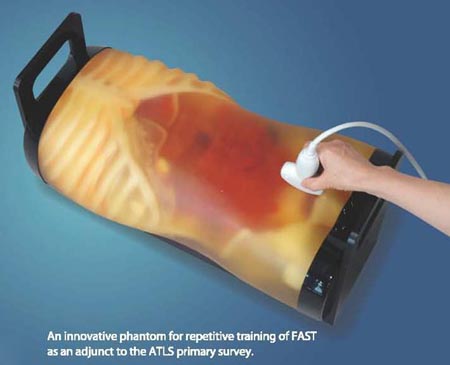

FAST/ER FAN Ultrasound phantom has been developed to provide simulated training in FAST (Focused Assessment with Sonography for Trauma), an ultrasound examination directed at identifying the presence of free intraperitoneal or pericardial fluid in trauma patients. Use for training Sonographers and emergency medical staff in detecting the possible causes of shock. Traumas such as mass hemothorax, intraperitoneal hemorrhage, or cardiac tamponade and effusion are demonstrated.

Features
"FAST/ER FAN" Internal Organs

Abdominal ultrasound has been used to evaluate trauma patients in Europe since the 1970’s. It is now included as part of the Advanced Trauma Life Support (ATLS) course. The FAST exam is a highly sensitive and specific screening test for identifying patients with hemoperitoneum and/or hemopericardium in need of immediate surgery. It can be used in patients with blunt or penetrating trauma. Ultrasound can be performed on both stable and unstable patients at the bedside without exposure to radiation or contrast, and can be repeated as often as necessary.

The FAST exam is performed by utilizing 4 views:
  • Morrison's Pouch: The right upper quadrant at the interface between the liver and gerota's fascia of the right kidney.
  • Perisplenic View: The left upper quadrant visualizes the left kidney and spleen.
  • Pelvic View: The rectovesicular pouch in males and the cul-de-sac in females utilizing both transverse and longitudinal views of the pelvis.
  • The Pericardium: Evaluation for pericardial effusion by placing the probe just to the right of the patient's xiphoid.
Set Includes:
  • 1 Ultrasound phantom with carrying base
  • 1 Tutorial Manual (DVD)
Materials
  • Soft Tissue and Organs: Urethane base resin
  • Synthetic Bones: Epoxy base resin
  • Size: approx.61 x 30 x 30 cm
  • Weight: approx.31 kg

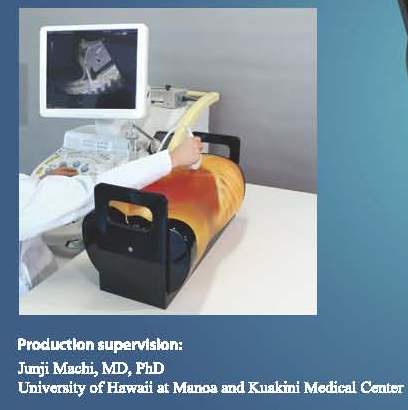

"FAST/ER FAN" In Use
"FAST/ER FAN" Ultrasound Images
