Tissue Equivalent Ultrasound Prostate Phantom - CIRS 053S, 053L, & 053L-EF
Ultrasound - MRI - CT
The Ideal Training Device for Ultrasound Guided Procedures

The CIRS Ultrasound Prostate Training Phantom is a multi-modality disposable phantom developed for practicing procedures which involve scanning the prostate with a rectal probe.

Gel formulations within the Model 053S, 053L and 053L-EF are designed to minimize needle tracking and to provide imaging contrast under CT, MRI, ultrasound and elastography.

The prostate along with structures simulating the rectal wall, seminal vesicles and urethra is contained within an 11.5 x 7.0 x 9.5 cm clear acrylic container. A 3 mm simulated perineal membrane enables various probes and surgical tools to be inserted into the prostate.

This phantom is an ideal training device for ultrasound guided cryosurgery, radioactive seed implantation, and needle biopsy.

The phantom is available with lesions (053L) and without lesions (053S) and can be ordered in either the standard side-fire configuration or an alternate geometry optimized for end-fire probes (053L-EF).

Features:
Side-Fire Configuration
Side-Fire Configuration

End-Fire Configuration
End-Fire Configuration

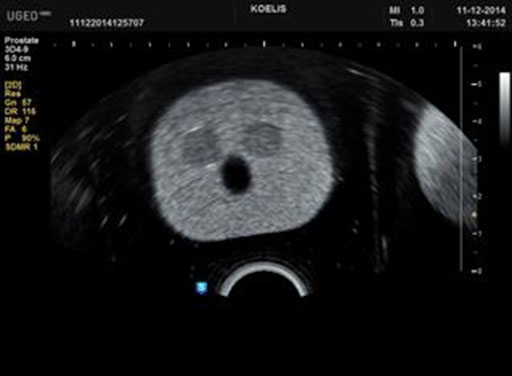

CIRS 053L Ultrasound
CIRS 053L Ultrasound

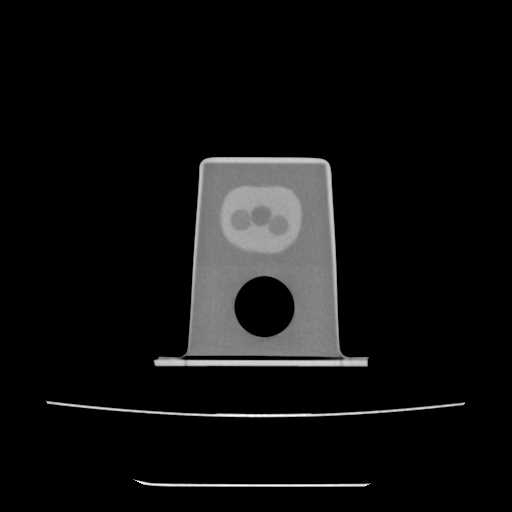

CIRS 053L CT
CIRS 053L CT

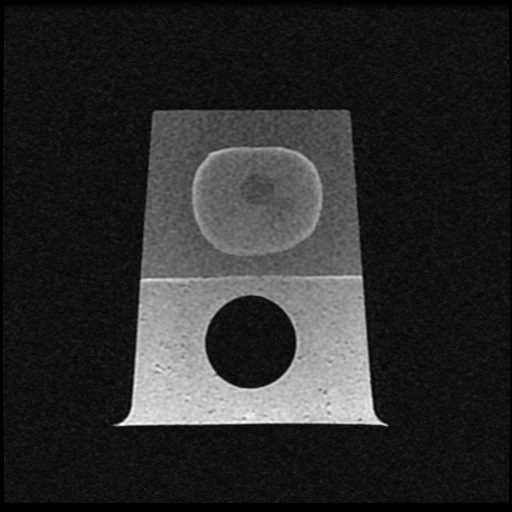

CIRS 053L MRI T1
CIRS 053L MRI T1

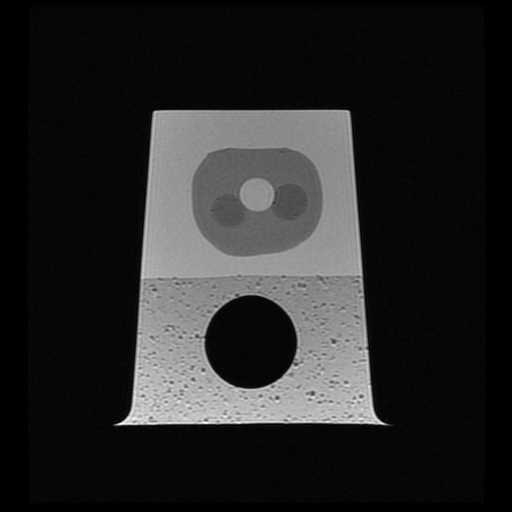

CIRS 053L MRI T2
CIRS 053L MRI T2

Specifications
Container Dimensions: 11.5 x 7 x 9.5cm
Weight: 2 lbs
Front Probe Opening: 3.2 cm Ø
Rear Probe Opening: 2.6 cm Ø
Background Gel Ultrasound Appearance: Anechoic
CT Appearance: Dark
MRI Appearance: Bright
Elastography: Soft
Urethra Dimensions: 7 mm Ø
Ultrasound Appearance: Anechoic
CT Appearance: Dark, Similar to Prostate
MRI Appearance: Brighter than Prostate
Elastography: Stiffer than Prostate
Prostate Dimensions: 5cm x 4.5cm x 4cm
Ultrasound Appearance: Average Echo-genicity
CT Appearance: Dark, Slight Contrast with Background
MRI Appearance: Dark
Elastography: Soft, Slight Contrast with Background
Seminal Vesicles Dimensions: 7 mm Ø x 10 cm long
Imaging appearance is similar to prostate
Lesions (053L and 053L-EF) Qty: 3
Dimensions: Approximately 10 mm Ø
Ultrasound Appearance: Hypoechoic
CT Appearance: Bright
MRI Appearance: Dark
Elastography: Stiff
Rectal Wall Dimensions: 6cm x 11cm x 0.5cm
Imaging appearance is similar to urethra
Model 053 Includes
  • Tissue Equivalent Ultrasound Prostate Phantom
  • User Guide
  • 6-Month Warranty


Prostate Phantom Selection Guide
Model Description Transducer Type
053S Tissue-Equivalent Ultrasound Prostate Phantom without Lesions Side-Fire or BiPlane
053L Tissue-Equivalent Ultrasound Prostate Phantom with Lesions Side-Fire or BiPlane
053L-EF Tissue-Equivalent Ultrasound Prostate Phantom with Lesion for End-Fire Transducers End-Fire
053-I Ultrasound Prostate Training Phantom Side-Fire or BiPlane
