4007A GM Survey Meter
Ruggedized • Basic • Medical Grade • Economical

Features:

The Model 4007A Survey Meter is new improved version of the Model 3007A! It is enclosed in a fiberglass-reinforced case that adds durability in rough environments. Versatility, ease of use and its rugged construction make this unit a good choice for Radiographers. The Model 4007A is a portable, battery-powered Survey Meter that can be used for Radiation Monitoring and Contamination Measurements.

The Model 4007A has a BNC Connector on the panel to attach to any one of a series of interchangeable probes. The Model 4007A comes standard with a mR/h and CPM (Counts Per Minute) scale. The Model 4007A SV unit comes with a µSv/h and a CPS (Counts Per Second) scale. The 4007A is available with three different probes for a wide range of applications that include radiation level monitoring, contamination detection and frisking.

The 4007A has individual calibration controls for each range and is equipped with a speaker which can be turned off. The speaker provides clicks that are in proportion to the radiation field intensity.

This meter may be calibrated to only one probe at a time, switching probes requires re-calibration.

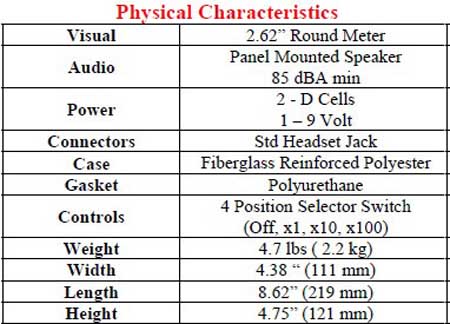

4007A Survey Meter Physical Characteristics

End window probe 900 volt Pancake Probe 900 volt Side Window Probe 900 volt

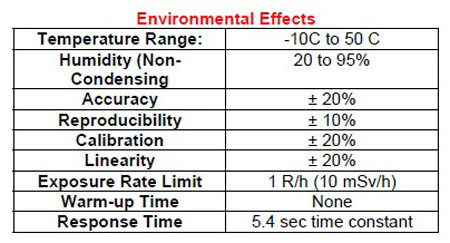

4007A Survey Meter Environmental Effects

Meters
Item #   Description
4007A 4007A GM Survey Meter - Ruggedized

0-50 mR/hr, 0-30 Kcpm
Includes Probe (choose one of three),
BNC Cable, shoulder strap included
4007A SV 4007A SV GM Survey Meter - Ruggedized

0-500 uSv/hr, 0-5 CPS Scale
Includes Probe (choose one of three),
BNC Cable, shoulder strap included
Options
360 Pancake Probe 900 volt Pancake Probe 900 volt

alpha, low-energy beta, low-energy X-ray and gamma radiation
Includes Probe (choose one of three),
BNC Cable, shoulder strap included
370 End window probe 900 volt End window probe 900 volt

Detects Alpha, low energy Beta, low energy X-Ray, & Gamma
BNC Connector
3012 Side Window Probe 900 volt Side Window Probe 900 volt

Mediun & High energy X-ray, & Gamma, High Energy Beta
Cord with BNC connector attached.
3020   Headphones For use in high noise areas
