Pro-RF HighRes - Pro-Project - 02-112 & 02-111
Test phantom for evaluation of high contrast resolution of fluoroscopy
system in one exposition. It consists of eight patterns of wire mesh in a pie shape.

Technical data (can be modified to customer specifications):

dimensions: 180 x 180 x 10 mm
cover made of PMMA
two standard configurations of high contrast wire mesh patterns:

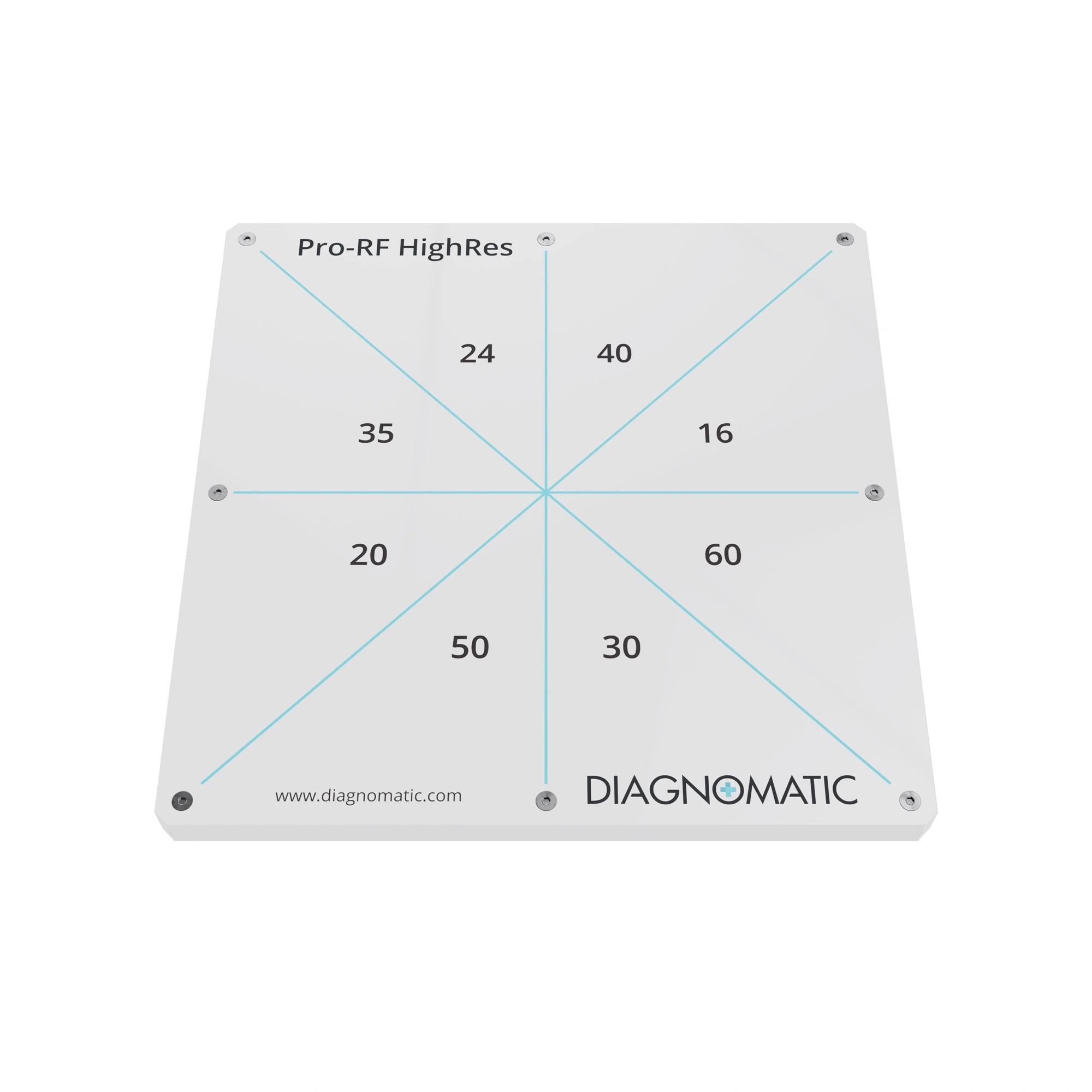

- for standard systems: 16, 20, 24, 30, 35, 40, 50, 60

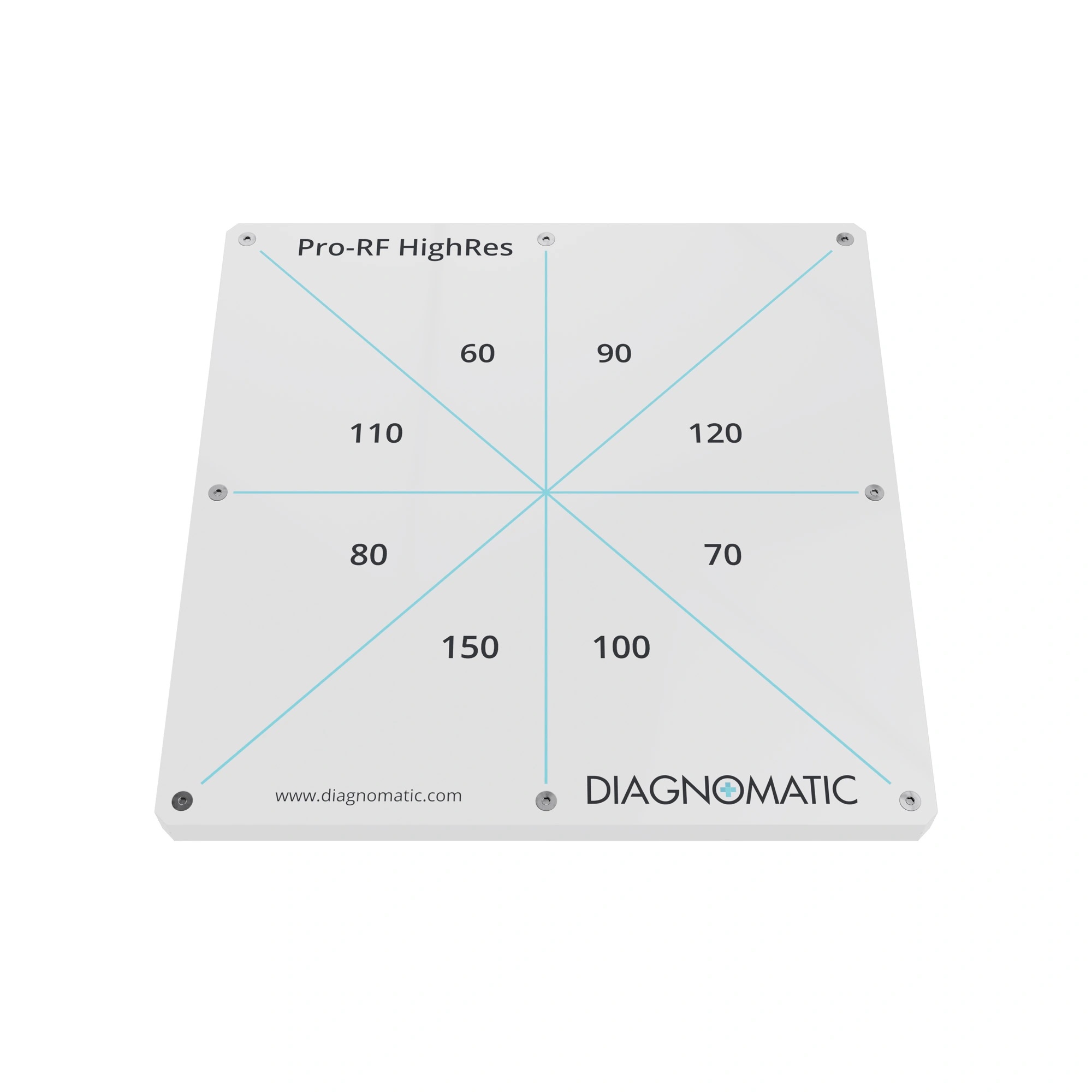

- for higher resolution systems: 60, 70, 80, 90, 100, 110, 120, 150

Product features:

complies with:
- IEC 61223-3-1
CE certified
the Manual provides detailed guidelines for carrying out each test, results assessment and registration

Item Number	Description
02-112	Pro-RF HighRes - mesh high contrast resolution phantom (16-60)
02-111	Pro-RF HighRes - mesh high contrast resolution phantom (60-150)
