Pro-RF CDR - Pro-Project - 02-402

Phantom for evaluation of imaging performance of radiographic systems. It allows for wide-range low-contrast and high-contrast resolution evaluation and sensitometric measurements. Available in standard layout plus any custom configuration.

Technical data (can be modified to customer specifications):

diameter: 180mm
thickness: 10mm
3 circular rims on the outside of the phantom (Ø: 150, 160 and 170mm) for geometry and collimation check
17 low-contrast objects, 11mm in diameter, producing contrast values from 0.2 to 7.5%
17 small high-contrast objects, 0.5mm in diameter, producing contrast values from 3.9 to 95.4%
10 sensitometric measurement point details, 5.6 in diameter, producing contrast values from 0.11 to 1.0
pattern for line pair resolution evaluation (from 0.5 to 14.3 LP/mm)
There are 2 high purity Cu attenuation filters, one is 0.5 mm thick and the other is 1.0 mm thick (fits to the diaphragm housing)
compact carrying case

Product features:

complies with:
- IEC 61223-3-1
- IPEM Report 91 (2005): Recommended Standards for the Routine Performance Testing of Diagnostic X-Ray Imaging Systems published by the Institute of Physics and Engineering in Medicine
CE certified
the Manual provides detailed guidelines for carrying out each test, results assessment and registration

Item Number	Description

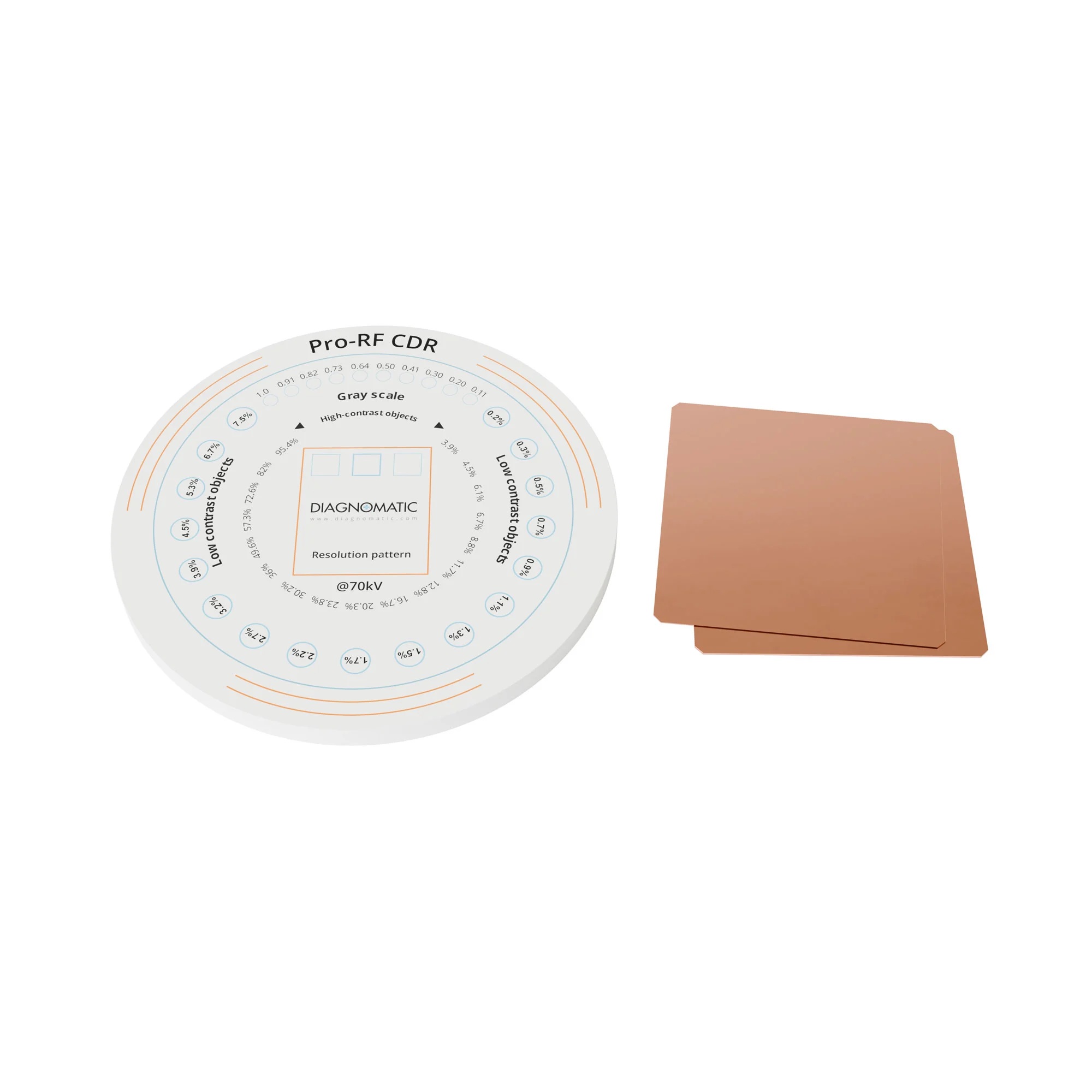

02-402	Pro-RF CDR - phantom for high and low contrast evaluation with two Cu Filters. One is 0.5mm thick. Second piece is 1.0mm thick. in carrying case
