ECTphan™ / Specphan™
Test Tool For ECT (SPECT & PET) and Systems

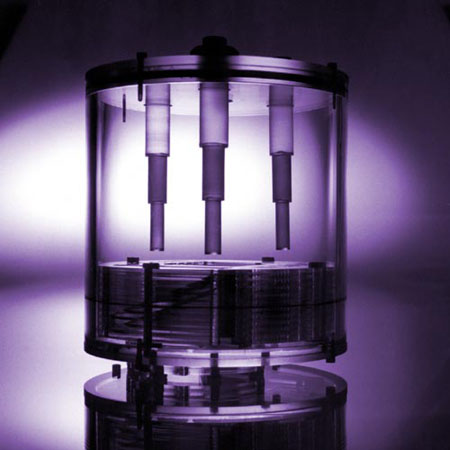

Features and precise components extend testing capability and save time. The ECTphan™/Specphan™ includes a time-saving cantilever case mount that extends the phantom beyond the table edge, allowing small radius rotations previously restricted by the patient table. Test components include the externally-filled, low contrast chambers, and slice thickness test ramps.

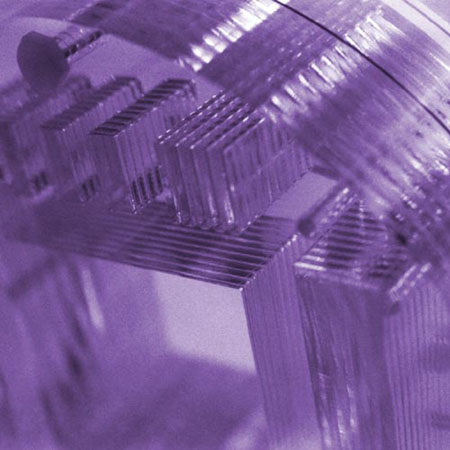

The chambers enable three levels of hot and/or cold contrasts to be evaluated in three diameters. Test ramps are used to measure slice thickness and slice position. These measurements are critical for volume and fusion imaging applications. These tests can be performed either manually or automatically through automated software available from the Institute for Radiological Image Sciences (IRIS).
Tests - Summary- Pixel size
- Spatial linearity
- Signal to noise ratio (SNR)
- Slice width
- Uniformity
- Spatial resolution
- Point spread function
- Slice position verification
- Slice incrementation accuracy
- Center of rotation verification
- Slice incrementation accuracy
- Center of rotation verification
- Volume sensitivity
- Low contrast sensitivity
The Phantom Laboratory and physicists, David Goodenough, Ph.D. and Steve Dyer, M.H.S., have worked together to develop the Specphan™ Phantom. The Specphan™ design reliably performs routine quality assurance tests, as well as, extensive acceptance tests of single photon emission computed tomography (SPECT) and coincidence detection systems
| ECTphan™ / Specphan™ Models | |
| Item # | Description |
| ECTphan™ 330 | Complete ECTphan™ including 20cm inside diameter housing, high resolution test plate, slice thickness ramps, uniformity selection, MTF point source holder, 3 SMR341 low contrast inserts, and cantilever case mounting system |
| ECTphan™ 330SR | Complete ECTphan™ including 20cm inside diameter housing, high resolution test plate, slice thickness ramps, uniformity section, MTF point source holder and 3 solid SMR350 low contrast inserts and cantilever case mounting system |

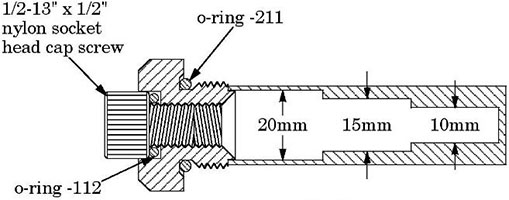

| SMR341 |
Fillable low contrast insert rod with 20mm, 15mm, and 10mm IDs |

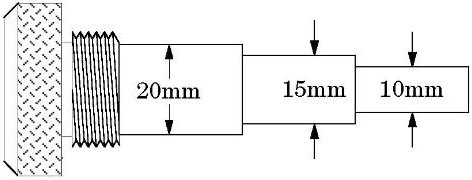

| SMR350 |
Solid "cold" low contrast rod with 20mm, 15mm, and 10mm ODs |
| SMR355 |
ECTphan™ Line Source Phantom 20cm tank with 3 x SMR352, line sources, and cantilever case mounting system. |
| SMR352 |
Line Source Plugs (Set of 3) Fillable 1mm ID clear urethane rod inset with Luer Lock fittings and end caps |
| SMR356 |
3D Image Fusion Perpendicular Cube The 3D Image Fusion Perpendicular Cube enables verification of registration for SPECT/CT and PET/CT fusion imaging |
| SMR357 |
3D Image Fusion Ramp Cube The 3D Image Fusion Ramp Cube enables verification of registration for SPECT/CT and PET/CT fusion imaging |
| Note: In 2010 several changes and additions were made to the Specphan™ line. To encompass the broader range of applications, the name has been changed to ECTphan™ Phantom. | |
