Jaszczak Flangeless Deluxe Phantom™
ECT phantoms for PET and SPECT, meets ACR requirements
The phantom provides consistent performance information for any SPECT or PET system. The Phantom meets the requirements set by ACR for SPECT. The SPECT Phantom is the same as the Deluxe SPECT Phantom except that the flanges have been removed. Multiple performance characteristics of camera-based SPECT systems are evaluated from a single scan of the phantom.
On-axis and off-axis transverse line spread function may be easily measured without removing the cover plate. Measurements of full-width-half (or tenth) maximum can be readily determined, either in air or in water.
The Phantom is used for:- High spatial resolution SPECT and PET systems
- System performance evaluation for:
- Collimator
- Artifacts
- Calibration
- Reconstruction Parameters
- Acceptance testing
- Routine quality, assurance and control
- Evaluation of center-of-rotation error
- Evaluation of non-uniformity artifact
- Evaluation of changes of radius-of-rotation on spatial resolution
- Evaluation of reconstruction filters on spatial resolution
- Evaluation of attenuation and scatter compensation
- Research
- ACR recommended for SPECT
- Cylinder inside diameter: 20.4 cm
- Cylinder inside height: 18.6 cm
- Cylinder wall thickness: 6.4 mm

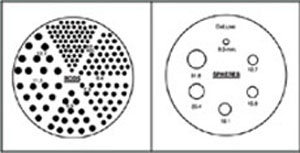

- Rod diameters: 4.8, 6.4, 7.9, 9.5, 11.1 and 12.7 mm
- Height of rods: 8.8 cm
- Solid sphere diameters: 9.5, 12.7, 15.9, 19.1, 25.4 and 31.8 mm
- Height of center of spheres from base plate: 12.7 cm
| Inserts for PET and SPECT Phantoms | |
 |
|

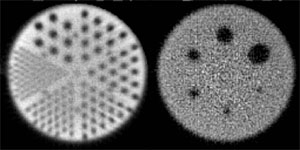

 Scan Images |
| Models and Ordering | |
|
ECT/FL-DLX/P |
Phantom, SPECT, Flangeless |
|
PET/FL/P |
Phantom, PET, Flangeless, Esser |
|
PET/FL-X2/P |
Phantom, PET/SPECT, Flangeless Includes PET and SPECT phantom lids |
| Related | |
| ECT/HS/SET6 | Phantom, Hollow Spheres Set (6) |
| ECT/TRI/I | Phantom Insert, Triple Line |
| ECT/CAR/I | Phantom Insert, Cardiac |
