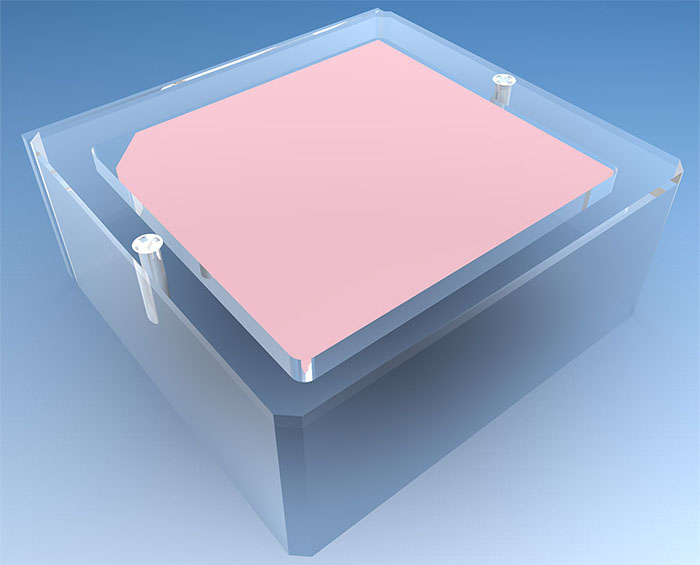

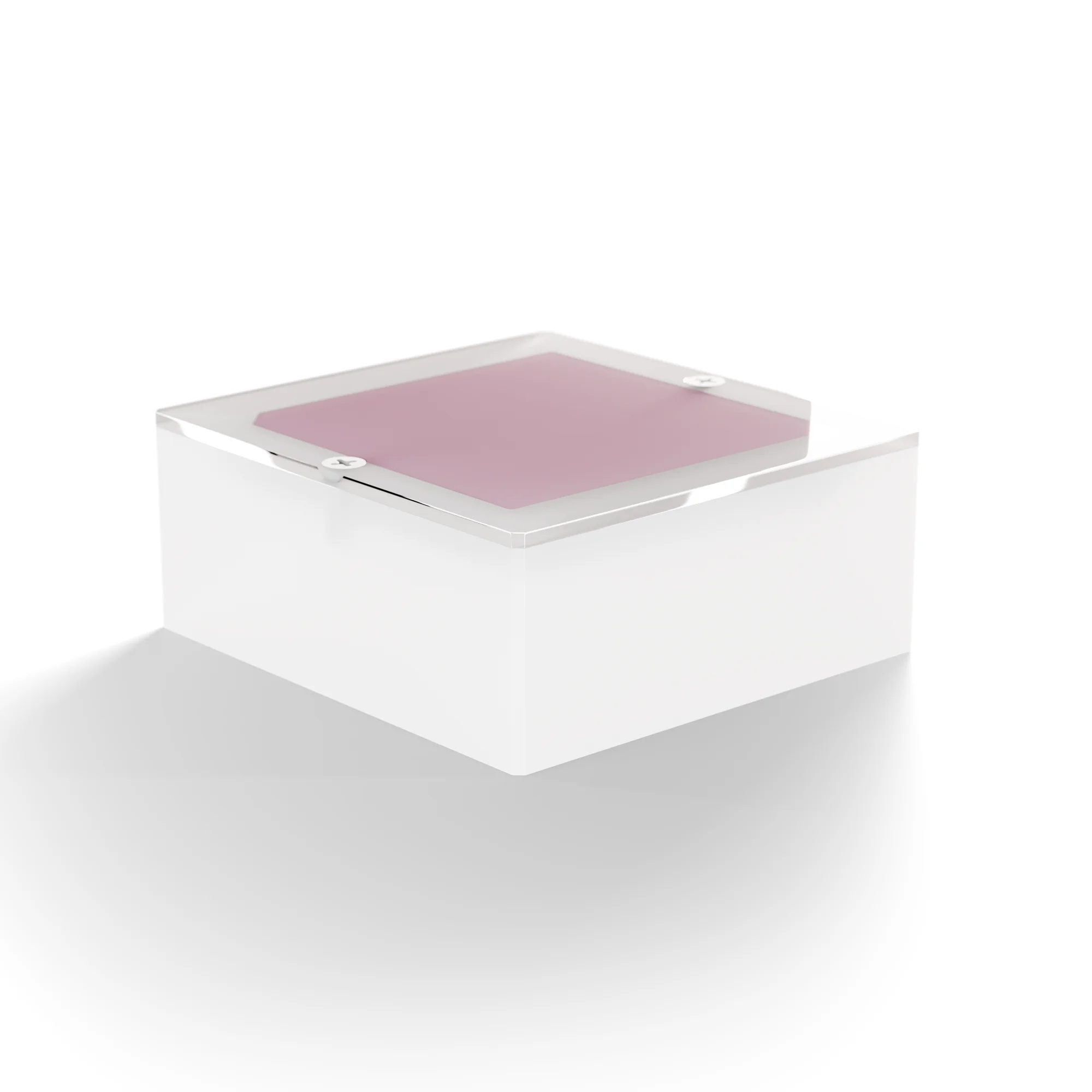

Pro-MAM - Pro Project - 03-501
Mammography Quality Control Phantom
Approved by ACR for Accreditation in USA
Comparable to Gammex 156 & CIRS 015 - Inquire for details!
Phantom can test the performance of a mammographic system and its ability to image small structures similar to those found clinically: calcifications, fibrous calcifications in ducts and tumor masses.
Technical data (can be modified to customer specifications):- dimensions: 102.0 x 108.0 x 44.0 mm
- simulates 42 mm compressed breast of average glandular/adipose composition
- total PMMA thickness: 36.75 mm

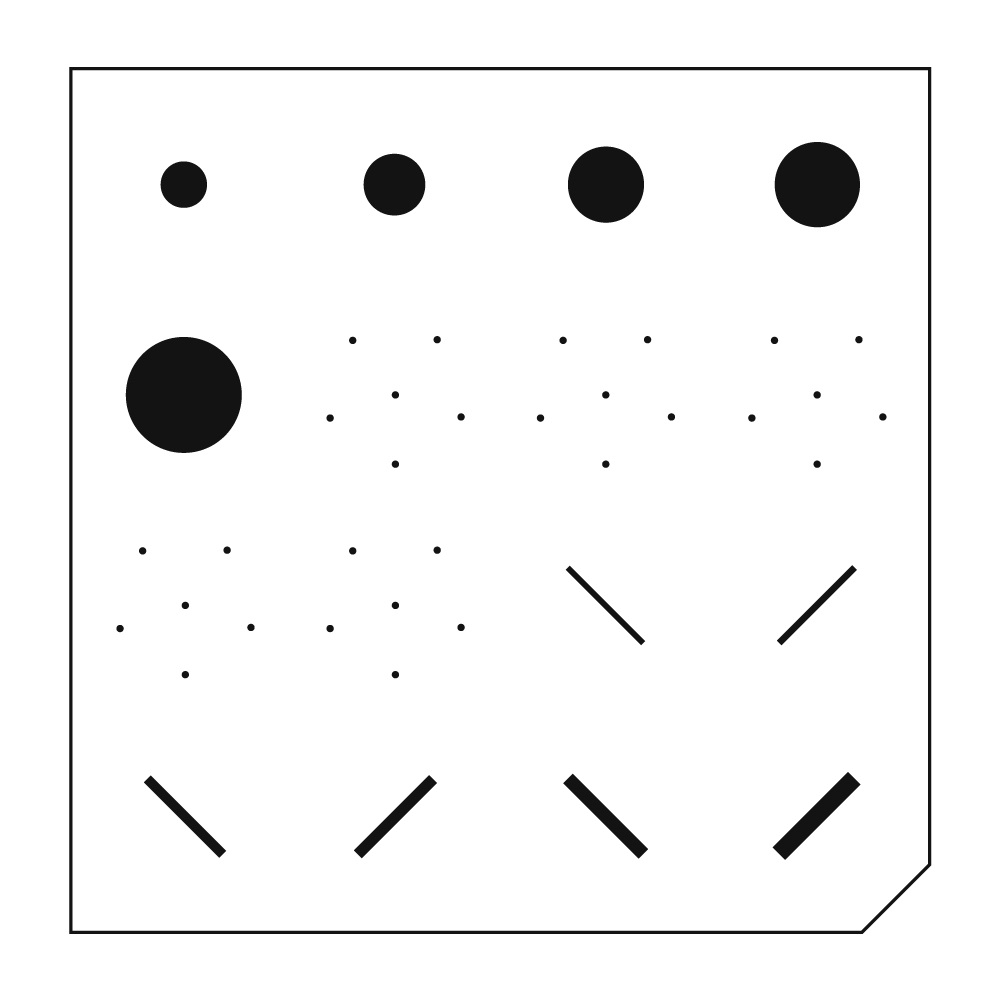

- wax insert:
- thickness: 7.25 mm
- nylon fibrils diameters: 1.56, 1.12, 0.89, 0.75, 0.54 and 0.40 mm
- microcalcifications: 0.54, 0.40, 0.32, 0.24 and 0.16 mm Al2O3 specks
- tumor-like masses: 2.00, l.00, 0.75, 0.50 and 0.25 mm thick
- 4mm thick PMMA contrast disc
- rotating support plate (optional)
- comfortable carrying case (optional)
- complies with:
- IEC 61223-3-2
- Complies with ACR manufacturing specification
- Approved by ACR for Accreditation in USA
- CE certified
- the Manual provides detailed guidelines for carrying out each test, results assessment and registration
| Models and Ordering | ||
| Item Number | Item Name | Item Description |
| 03-501 | Pro-MAM |
Mammography Quality Control Phantom Approved by ACR for Accreditation in USA |
