Urology C-Arm Table - 058-800
Fully equipped for image-guided urologic procedures

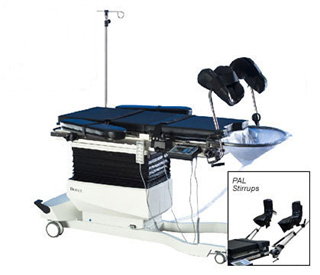

Urology C-Arm Table - 058-800

Shown with Simplicity Knee Crutches, Plastic Drain Bag
Holder with disposable bag and Carbon Fiber Arm Boards.
When stability, access, and precise, quiet, vibration-free positioning are essential

The Urology C-Arm Table is an ideal choice for image-guided procedures. The narrow FiberesinTM tabletop is cantilevered to accommodate portable or ceiling suspended C-Arms. Radiolucent areas are free of cross members, allowing full fluoroscopic visualization and unobstructed C-Arm positioning. Functional design provides complete access while minimizing radiation exposure to clinicians.

The Urology C-Arm Table features motorized actuation of height, X-Y, lateral roll and Trendelenburg motions of the tabletop. Multiple positioning control options with pre-programmed features ensure quick and safe tabletop positioning during any phase of a procedure. The rail-mounted main control panel, portable hand-held controller, and foot-operated controller can be positioned for convenient access from any point around the table.

Control made easy

The LCD screen of the Main Control Panel displays actual tabletop position (all axes) in real time, and provides menus and prompts for other functions. Up to ten position sets may be stored in system memory. A "Level" button brings the table to 0° tilt and 0° lateral roll while "Home" both levels and lowers the tabletop to minimum height for patient transfer. The portable hand-held and foot-operated controllers offer the freedom to adjust the table from other areas around the table. The Joystick Controller is used for motorized X-Y positioning and features proportional speed control.

More adjustments and features…

The Fowler back adjusts with a simple touch-handle lock/unlock mechanism to an 80° angle with incremental stops at 20°, 30°, 40°, 50°, 60°, 70° and 80°.

The table comes equipped with a lightweight non-imaging patient transfer extension and a radiolucent extension. The radiolucent extension provides capability for vascular, cardiac, and other general C-Arm applications. Whether you select knee crutches or the PAL Stirrups, arm boards or drain pans, the choice is yours. Biodex lets you configure the rest of the table to your exact specifications.

Both AC and battery power are standard. When operating on battery, there are no power cords to catch on feet or block table wheels. Battery charging can be accomplished during off hours by plugging in the AC power cord. An optional battery with separate charging unit can provide continuous cordless operation.

058-800 Shown with head and foot extensions

Radiolucent extension converts the Urology Table into a general purpose C-Arm Table.
____________________________________________


058-800 Drain

Choose from a stainless steel drain pan with a wire mesh splash screen or a plastic drain-bag holder for disposable drain bag.
Optional removable cassette tray

Optional removable cassette tray and grid are accessible from either side of the table.

As required by law, all Biodex C-Arm tables are CDRH registered and FDA Device Listed. All motorized tables are ETL product listed to the UL-60601-1 Medical Electrical Equipment Safety Standard.

Quick, safe control.

Main Control Panel

Main Control Panel

The main panel with backlit liquid crystal display mounts on either accessory rail. The LCD screen displays actual tabletop position (all axes) in real time, and provides menus and prompts for other functions. Up to ten position sets may be stored in system memory, and recalled at any time for automatic positioning. A "Level" button brings the table to 0° tilt and 0° lateral roll. "Home" levels the table and lowers the tabletop to minimum height for patient transfer. Control buttons are identified with easily recognizable icons.

Hand-Held Controller
Hand-Held Controller
Foot Controller
Foot Controller

The portable hand-held and foot-operated controllers offer the freedom to adjust height, lateral roll, X-Y and Trendelenburg motions from positions away from the main panel, or when hands are busy with other functions. The hand-held controller hangs on the accessory rail when not in use.

Joystick Controller
Joystick Controller

The joystick controller for motorized X-Y positioning offers intuitive positioning with proportional speed control. After setting an adjustable icon indicator on the joystick’s base, X-Y motion correlates directionally to actual tabletop motion. To prevent undesired motion by accidental contact with the joystick, a thumb button on top of the joystick must be pressed for activation.



Specifications CE and ETL Logo

Which C-Arm Table is right for you? Compare

058-800: Table, Urology C-Arm, 115 VAC

058-805: Table, Urology C-Arm, 230 VAC

Optional:

056-851: Drain Bag Frame

058-860: Drain Pain, Stainless Steel

056-853: Crutch, Knee, Simplicity, (pair)

058-862: Stirrups, PAL with boot pad (pair)

058-865: Arm Board, Standard (pair)

058-863: Arm Board, Dura Board with pad (pair)

058-850: IV Pole, rail mounted

056-862: Battery and Charging Unit, 115 VAC

056-863: Battery and Charging Unit, 230 VAC

056-463: Grid, X-ray

058-866: Cassette Tray, 11" x 14"

058-867: Extension Arm, Controller

Replacement:

056-857: Drain Bags, Sterile, Disposable, (10/pkg)
              Fits 056-851 Drain Bag Frame

056-460: Hose, Drain, Urology, 40/cs

056-802: Bellows Skirt, disposable plastic, 250/roll
              Fits Surgical C-Arm Tables 840, Urology C-Arm Table and Brachytherapy Table
