RayShield® Lead Glass Mobile X-ray Barriers & Panel
RayShield® Shatterproof Lead Glass Panel

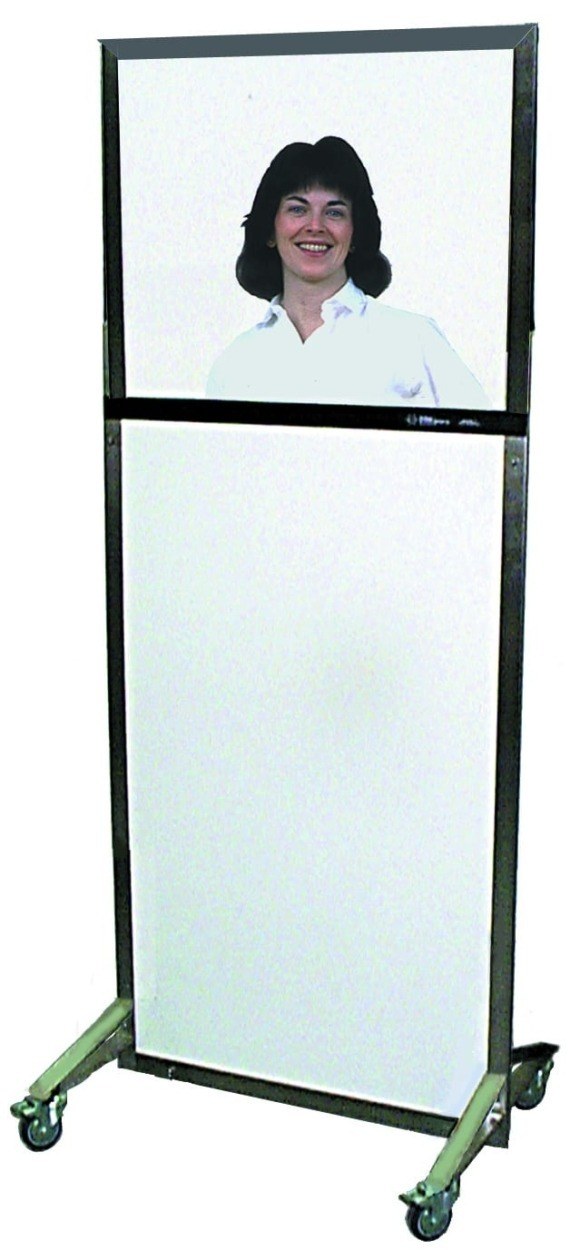

RayShield® Lead Glass Mobile X-ray Barriers & Panel

These Barriers solve a variety of X-ray Protection problems while offering a wide field of view and excellent X-ray body protection. Shatterproof Safety Glass panels have shatterproof high impact polycarbonate on the outside with clear lead glass sandwiched in the middle. The result is a durable clear panel that will resist impact and provide safety that regular lead glass cannot match.

Six sizes of barriers are available with your choice in each size of 1.5mm or 2.0mm lead equivalence. Framework is brush finished, highly durable 6061 Anodized Aluminum Frame and supporting brackets and hardware of Stainless Steel. With no paint to chip, these barriers maintain their like new appearance for many years. Opaque Panel is highly durable kydex material. Casters are medical grade. Foot operated caster locks allow for fixing barrier position.

Lifetime Warranty free of defects in materials and workmanship.

Custom-cut sizes are available on special order.

Lead Glass Mobile Barrier Specifications
  Regular Wide Jumbo
Overall Size 75"h x 30"w 75"h x 36"w 75"h x 30"w
Window Panel 24"h x 30"w 24"h x 36"w 48"h x 30"w
Opaque Panel 48"h x 30"w 48"h x 36"w 24"h x 30"w
1.5mm Lead Equivalency S-702 S-707 S-706
2.0mm Lead Equivalency S-702A S-707A S-706A
  Deluxe Ultra Super
Overall Size 75"h x 48"w 75"h x 72"w 75"h x 48"w
Window Panel 30"h x 48"w 36"h x 72"w 36"h x 48"w
Opaque Panel 42"h x 48"w 36"h x 72"w 36"h x 48"w
1.5mm Lead Equivalency S-700 S-701 S-705
2.0mm Lead Equivalency S-700A S-701A S-705A

RayShield® Shatterproof Lead Glass Panels
Lead Equiv 1.5mm 2.0mm
Thickness 8mm 10mm
Size Model Model
12" x 12" SG-771 SG-791
12" x 24" SG-770 SG-700
18" x 24" SG-728 SG-738
18" x 48" SG-722 SG-732
24" x 24" SG-735 SG-796
24" x 30" SG-762 SG-772
24" x 36" SG-724 SG-734
24" x 48" SG-777 SG-797
32" x 40" SG-721 SG-731
36" x 48" SG-733 SG-709
36" x 60"   SG-736
36" x 72"   SG-737
36" x 84"
48" x 48"   SG-792
48" x 60"   SG-775
